[C]INDEX TO MADMANS BUILD

Click links to go direct to the page (needs fixing since forum changes)

Madmans GTTDI130 spec.

Engine & Ancillaries

Allard EGR delete

DIY fabricated 57mm alloy and silicone Intercooler pipework

More intercooler and pipework pics here in Sleekys post

1.8t pancake pipe (bigger than PD130) 60mm silicone to intercooler- 50mm silicone to red turbo pipe

godspeed alloy uprated side mount intercooler

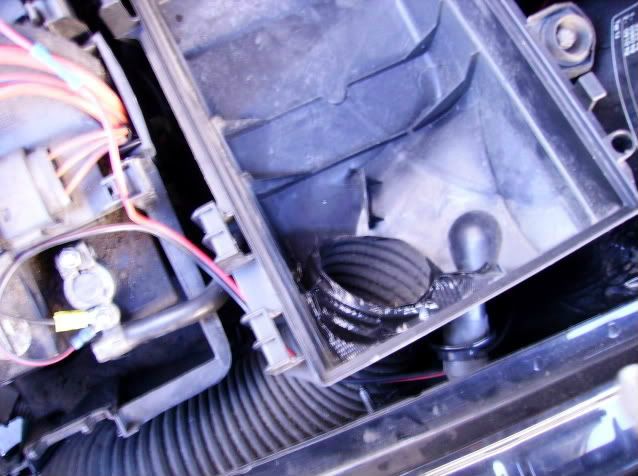

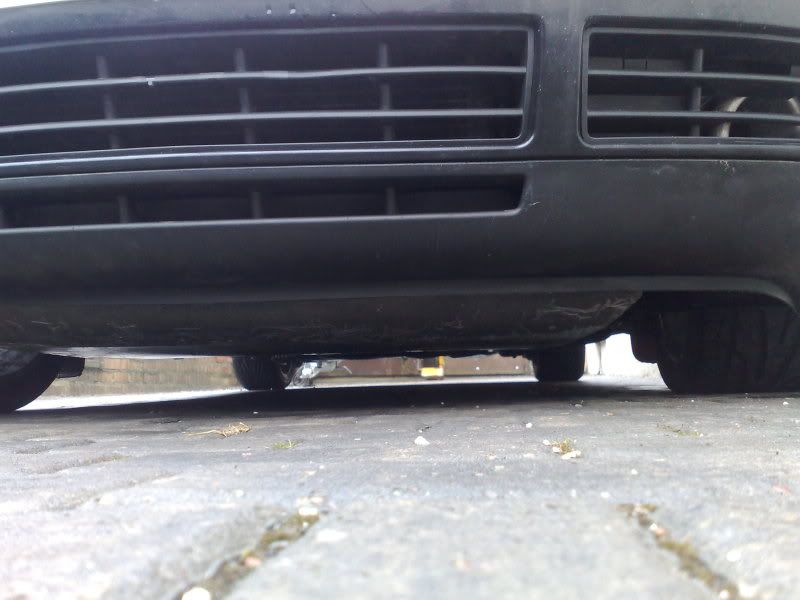

80mm cold air feed from lower grille to standard airbox

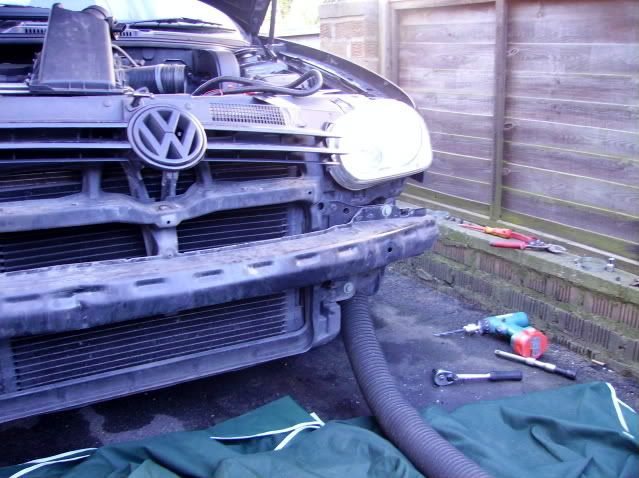

link to origional 80mm cold airfeed topic

K&N panel filter

Küberl Tuning GmbH chip stage Blacksmoke remap tweaked

FR&R Tuning STB Remap currently running fast road map

Raceland decat down pipe

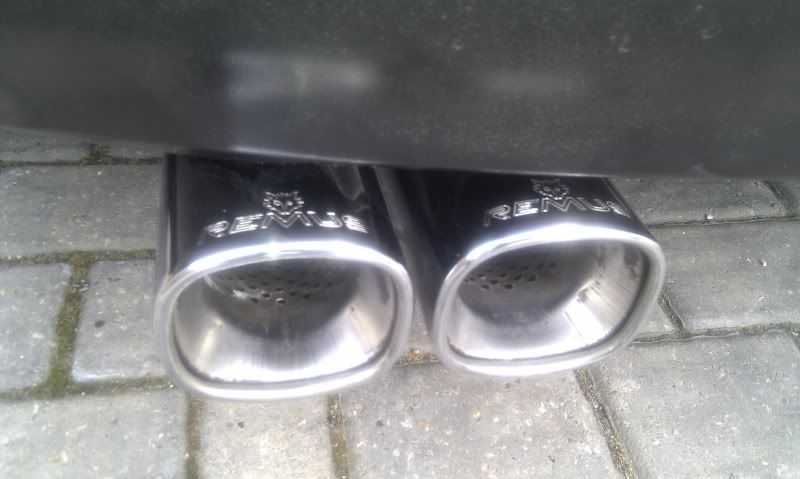

Remus Stainless system (straight through)

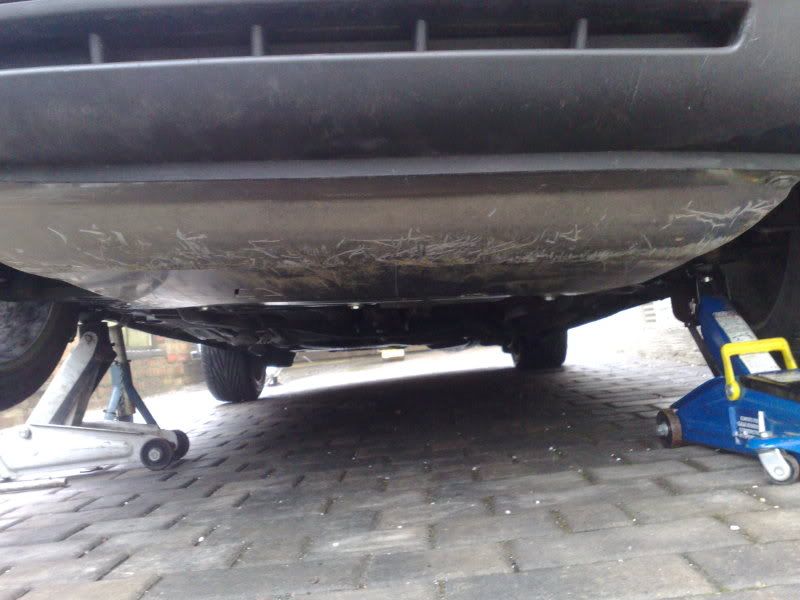

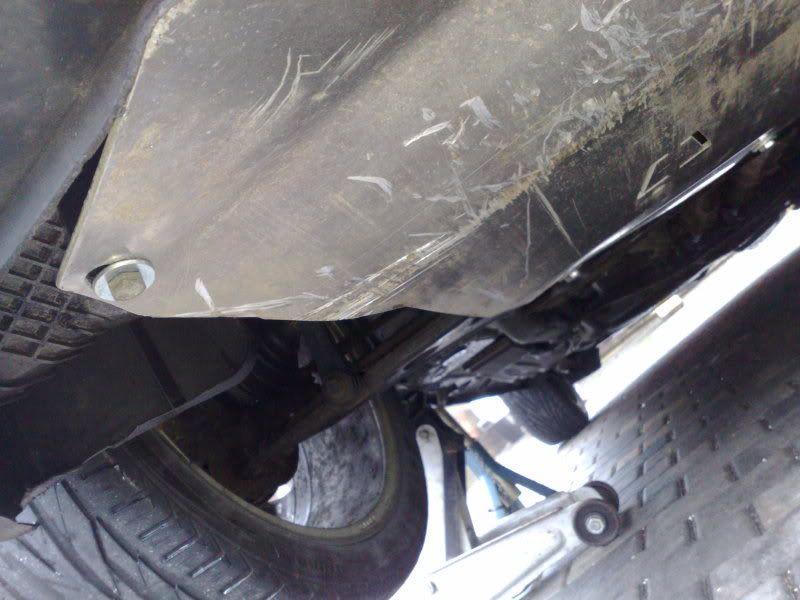

Diesel Geek Panzer sump guard (sound proofed with 6mm neoprene)

Powerflex dog-bone bushes

Removed N18 & N239 valves...leaving just the N75 valve

Running Gear

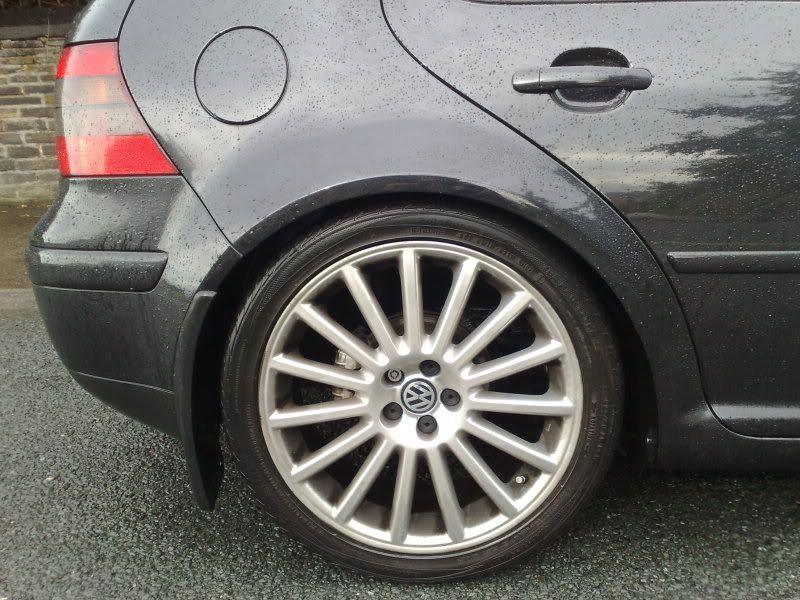

O.Z. Arristo R32 alloys 18x7.5 refurbed by CAS coatings in Antheracite- silver fleck

tyres Uniroyal Rainsport 2's 225 40 18 Uniroyal Rainsport 3 225 40 18

Zimmerman drilled discs all round 312mm upgrade front

Greenstuff pads

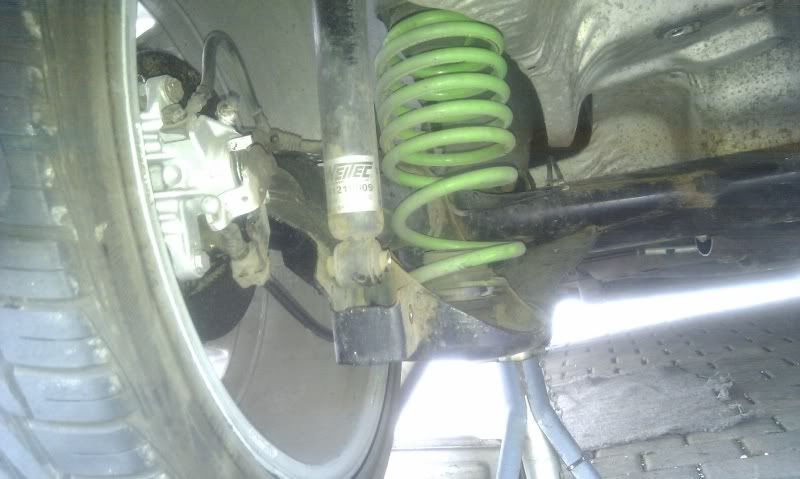

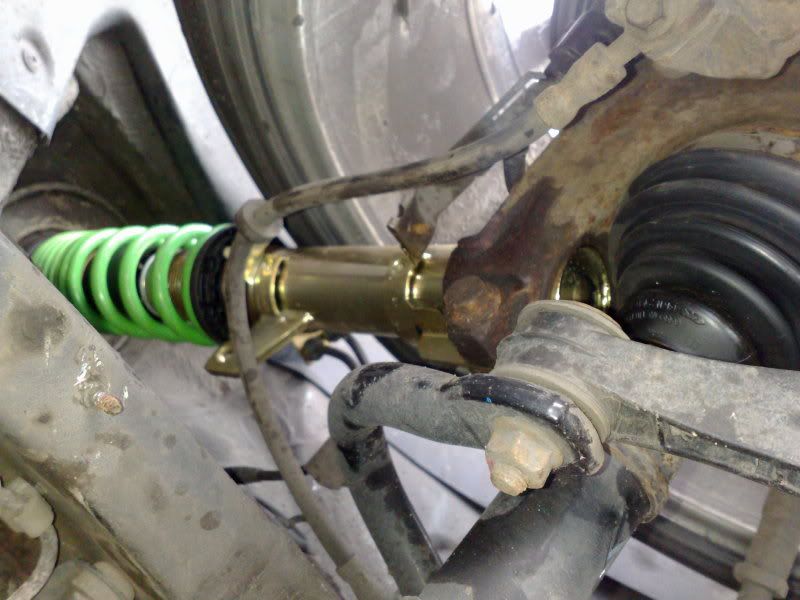

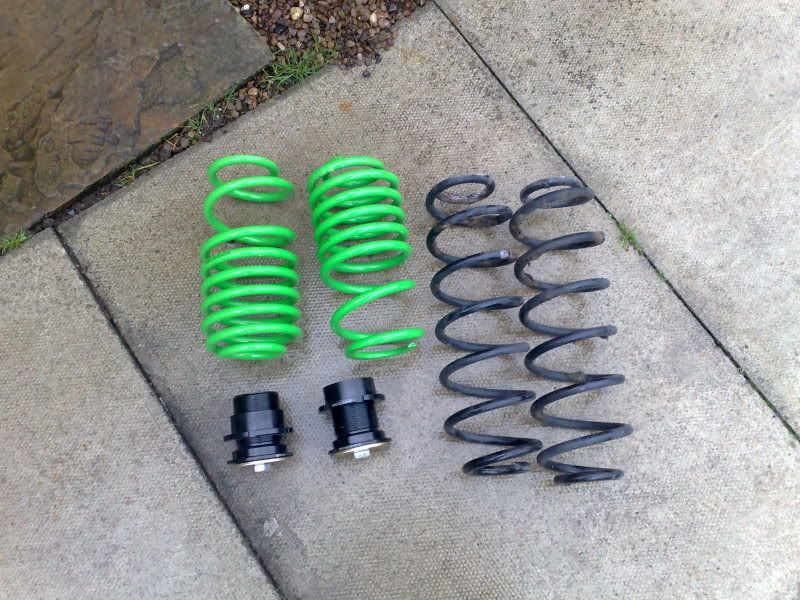

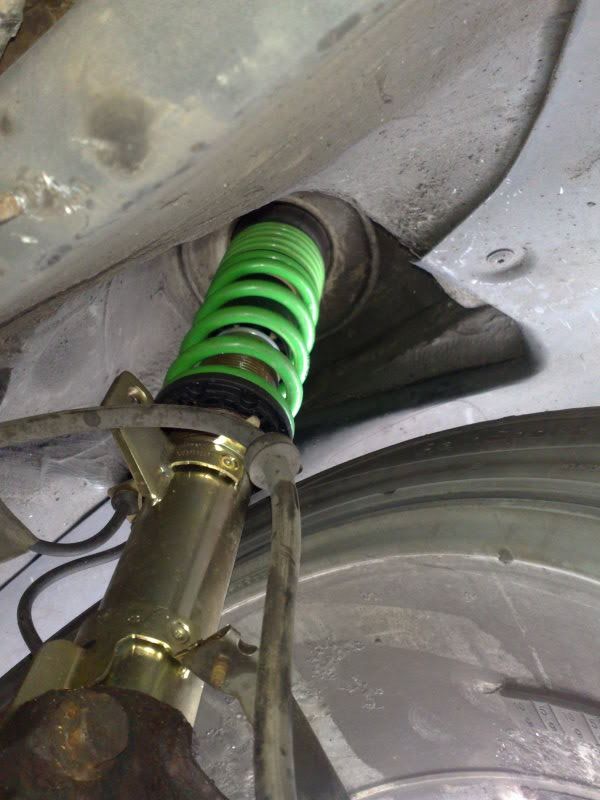

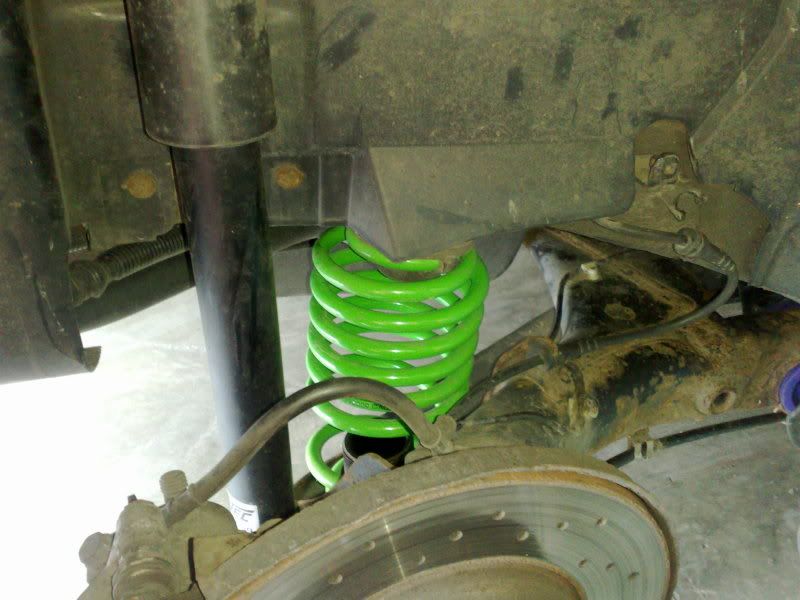

Weitec Hicon Gt coilover Kit + bushes + bearings

Powerflex rear beam axle bushes

Forge alloy - carbonfibre strut brace

Poly bushed front wishbones

TT Front 20mm ARB

312mm 256mm F & R brake conversion 312mm Zimmerman discs

DIY maintenance jobs I've carried out

All of the above mods

Cambelt change

Water pump

Water temp sensor

Ancillary drive belt

Thermostat

MAF sensor

retapped (Helicoil) engine mount thread

Cv joint boot...too many times

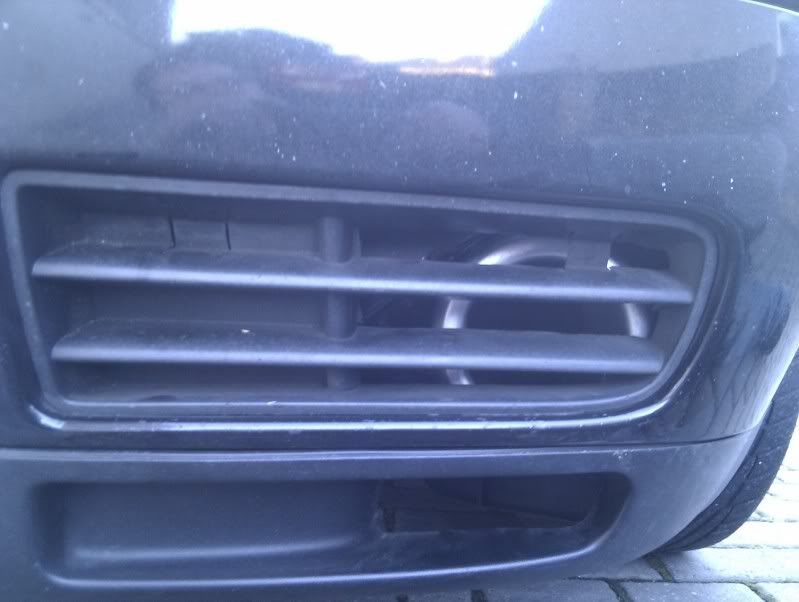

Arch liner intercooler vent

Delock drivers door

Cleaning the VNT mechanism with Mr Muscle Oven cleaner

Cleaning the VNT again with mr Muscle oven cleaner

Innotec Turbo clean

312mm brake upgrade

Under body cleaning/ arches de-greased Surface rust treatment

Interior

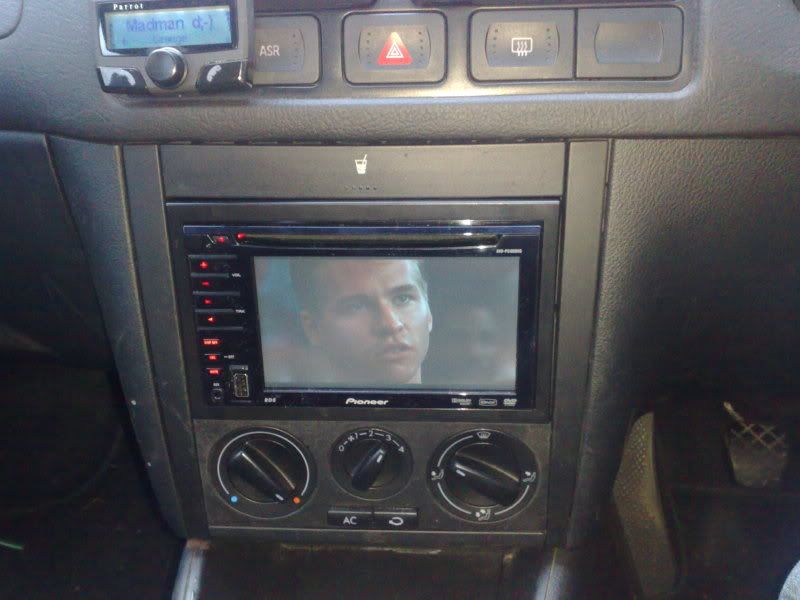

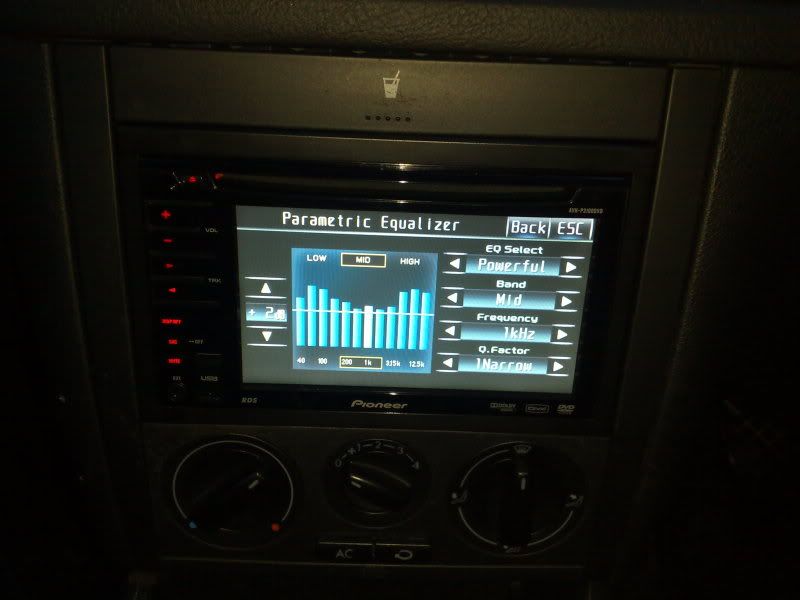

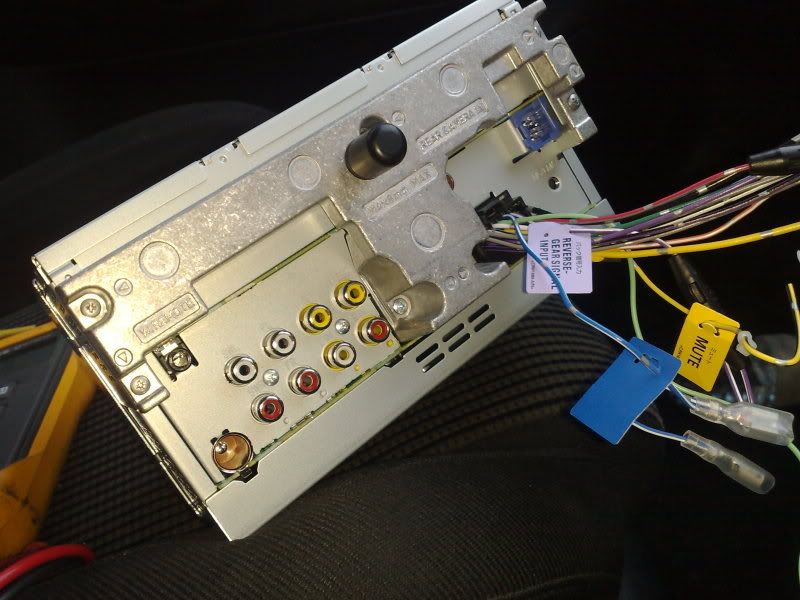

Pioneer double din head unit AVH-P3100DVD

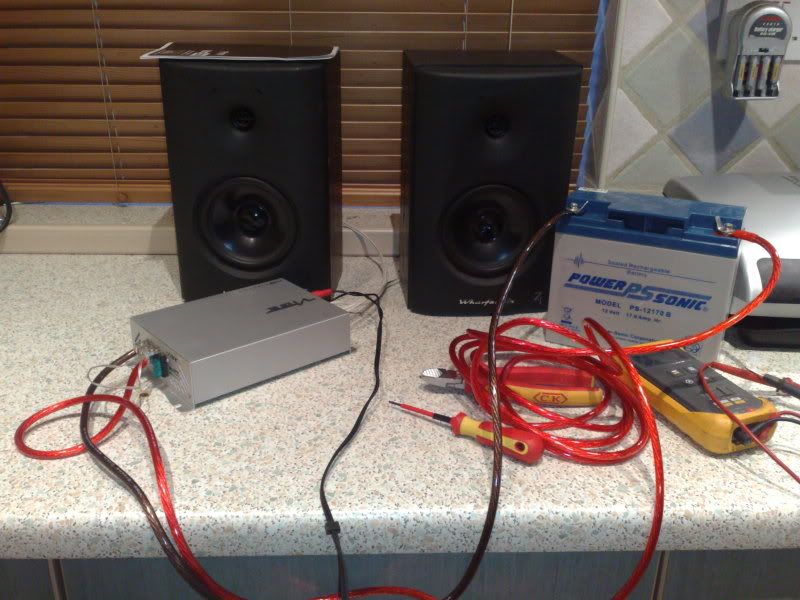

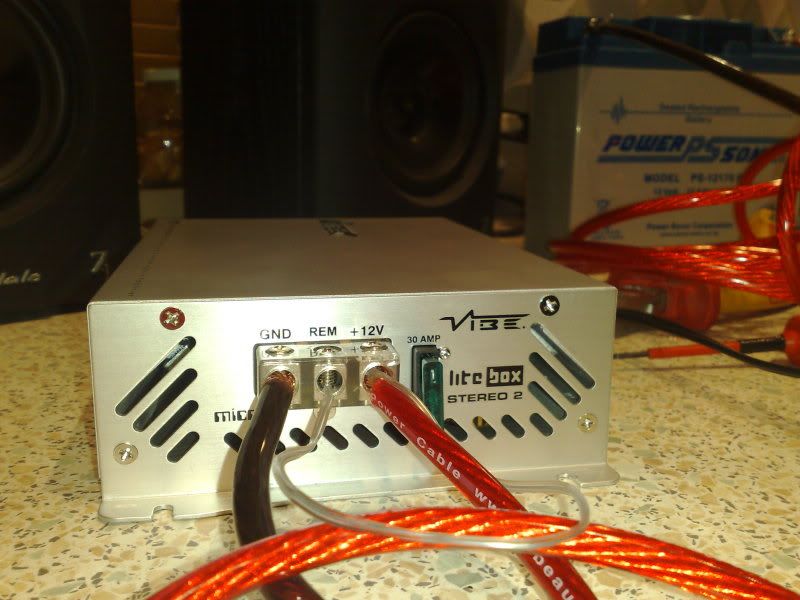

Vibe Litebox stereo 2 - amp

Focal 165VB 2 way component speakers

Pioneer secondary speakers for parrot car kit

Alarm - Dual blue LED's

stripped and polished netoptic trim (full set)

.:R line mats TT pedals

Exterior

4 Motion front vallance

Miscellaneous

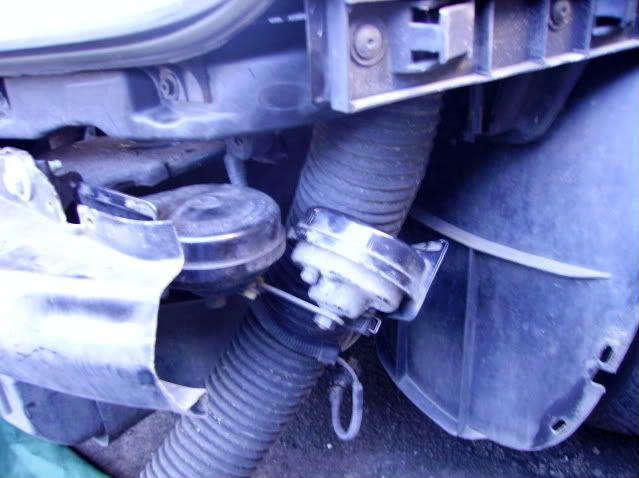

stebel Nautilus compact air horn 130db

Depo black projector headlamps - 6000k HID compact kit 5000k Hid kit Audi projectors fitted in the Depo housings

silvertec indicator bulbs

tinted repeaters

LED sidelights 6kk

Stubby antenna New polo antenna CELSUS AN3022DAB DIGITAL RADIO (DAB) & AM/FM ROOF MOUNT ANTENNA

Car was new April 2002

The car was formerley owned by Allied Grain Berwick upon Tweed Scotland, where it was a reps car. It had full service history at Western VW Edinburgh, with oil changes every 10k and had just under 80K when i was introduced to it.

I fell in love with this Golf in 2005...

A mate ( 2nd hand car dealer) lent it to me as my car was off the road. I took it to Croft to watch the Touring cars and was very impressed by it. I asked him how much it was going for and got it for £7500 cash. It replaced a 1994 Astra mk4 1.7 TD the issuzzu engined vauxhall which Id had from 6 month old. It pretty much stayed standard for a long time. I put a set of R32 rims on which were a Xmas present and left it at that for a while ...the more I browsed this forum the more ideas I got. It started with a K&N filter and 80mm cold air feed. I also got a very expensive German tuning box for reasonable money from a mate. Then one day it was down on power and that was traced to a choked up EGR and inlet manifold. I did the EGR delete and ran it for a while till I finally got a coilover kit due the susspension been rather saggy. It had a full set of zimmerman drilled discs and greenstuff pads put on for the MOT Aug 06....so that was the start of me spending a fortune

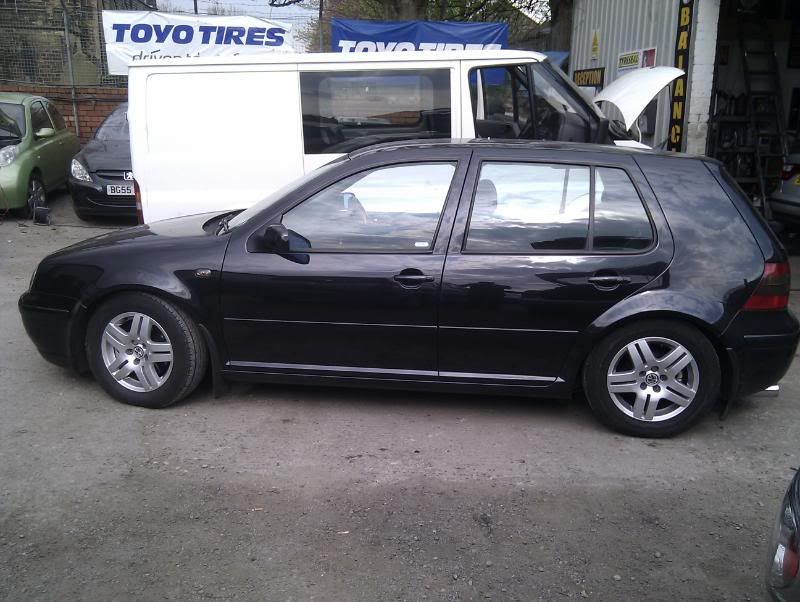

This was it in its totally origional condition







Then with the R32 rims



night shot



Twilight














·
TEAM 88 MOTORSPORT
Joined
·
8,901 Posts
Discussion Starter · #11 ·
cheers[:)]...took me a while to find, it was another ebay item. paid @ £60 IIRC bargain!! I love ebay, but you have to be patient...sometimes odd spellings pay dividends[:O]


·
TEAM 88 MOTORSPORT
Joined
·
8,901 Posts
Discussion Starter · #17 ·

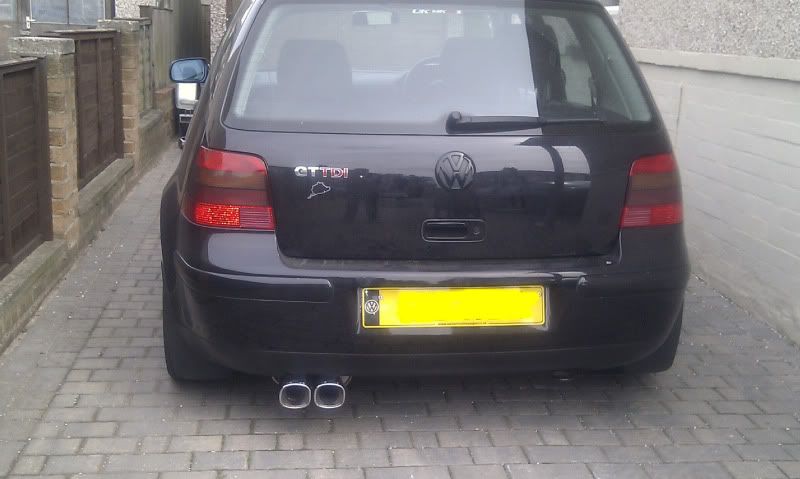

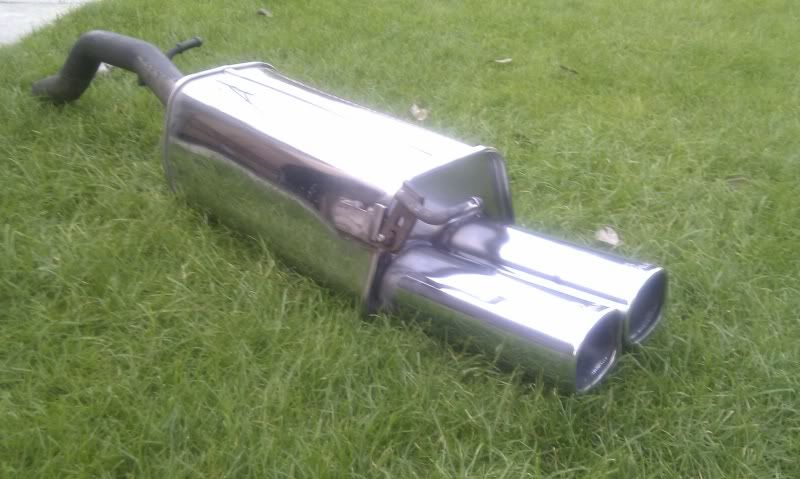

new exhaust back box fitted

Posted Image

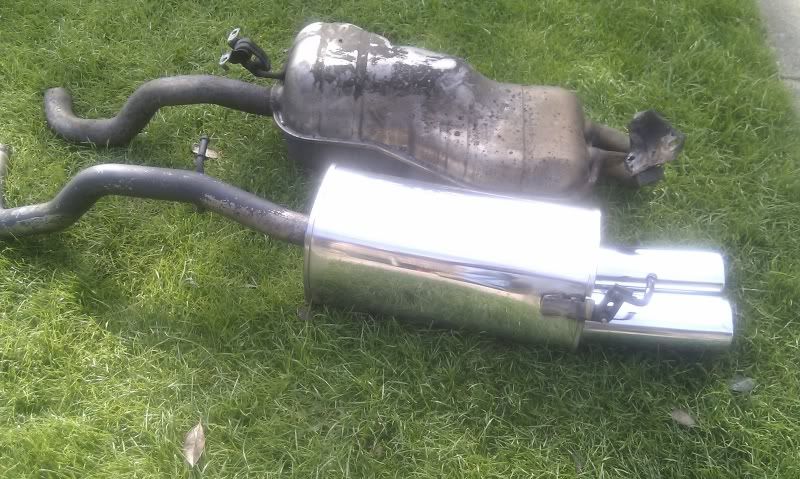

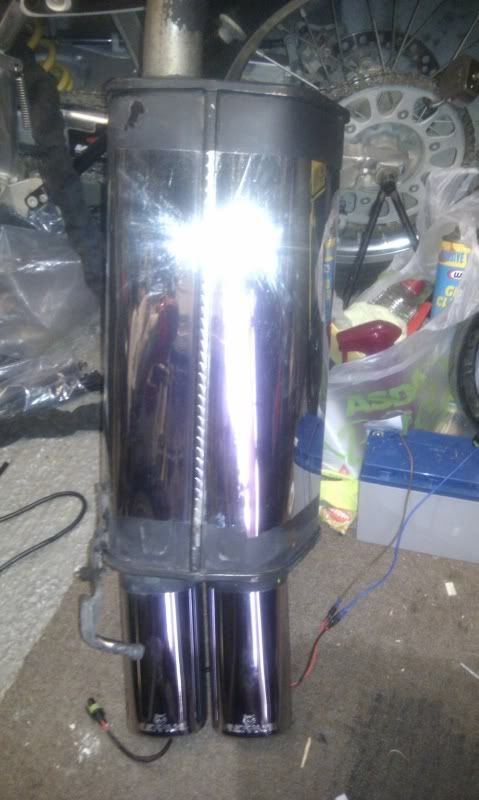

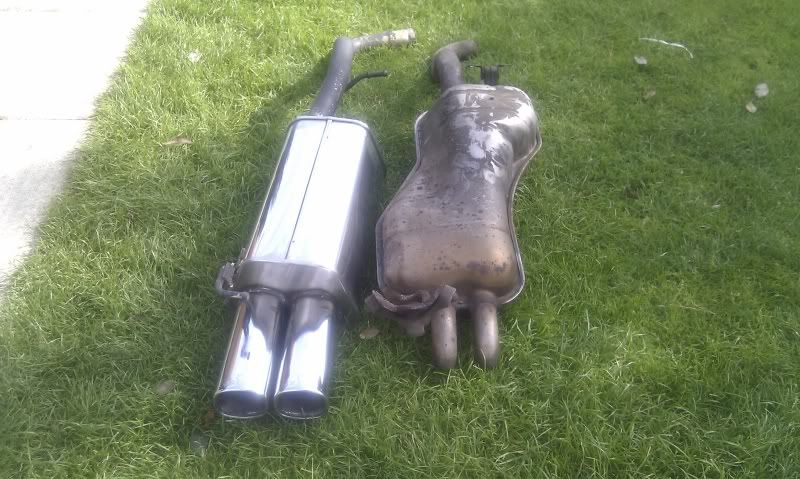

size comparison

Posted Image


looks a bit more meaningfull...and its actually quiter than the standard one.

Posted Image


Posted Image


axle dropped down to feed pipe over...its pretty tight to get out but the new one slipped in easier

Posted Image


·
TEAM 88 MOTORSPORT
Joined
·
8,901 Posts
Discussion Starter · #19 ·
Thanks

its quieter...there is no more noise than before. it does seem to rev sweeter too. Not sure if it sounds louder from the outside on a drive-by [au]


·
TEAM 88 MOTORSPORT
Joined
·
8,901 Posts
Discussion Starter · #20 ·

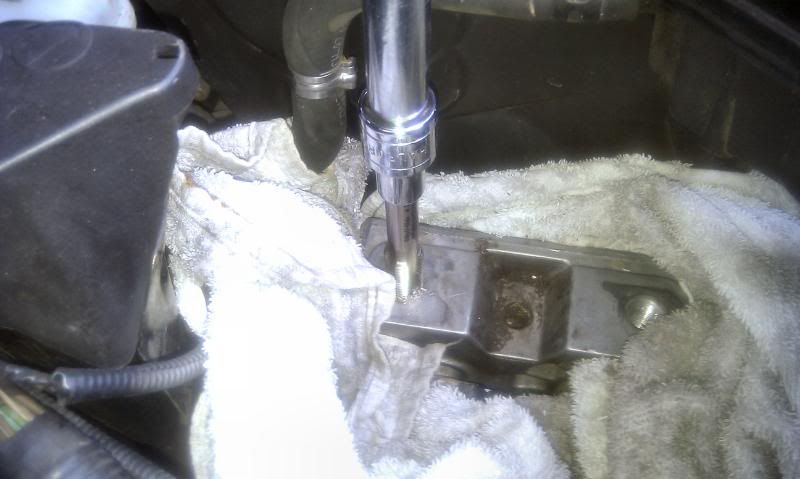

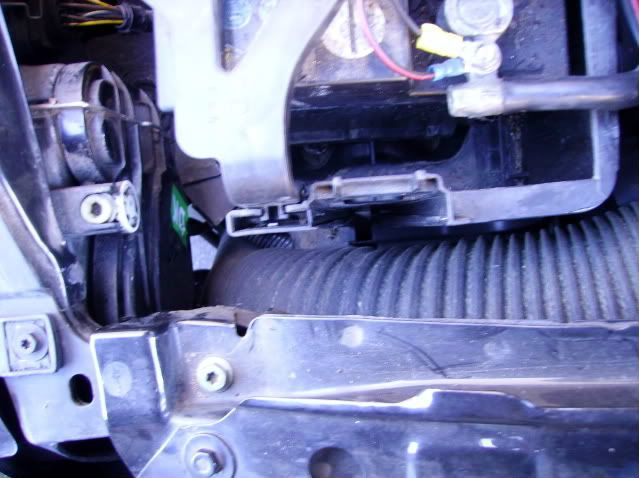

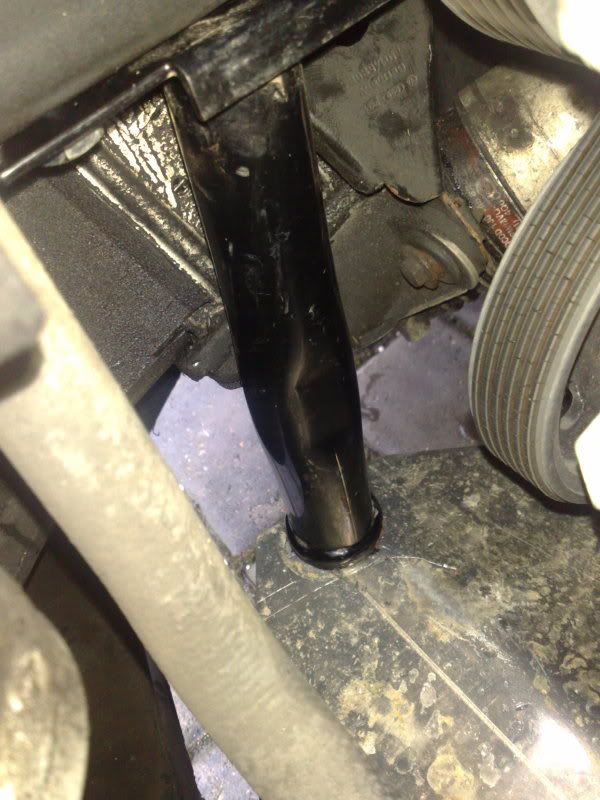

Todays job involved drilling out retapping and inserting an helicoil repair thread on the engine mount. Whilst doing the cambelt I found 1 tread totally stripped. which left the engine supported on 1 bolt and one held in with liquid metal, which was supprisingly tightly held.

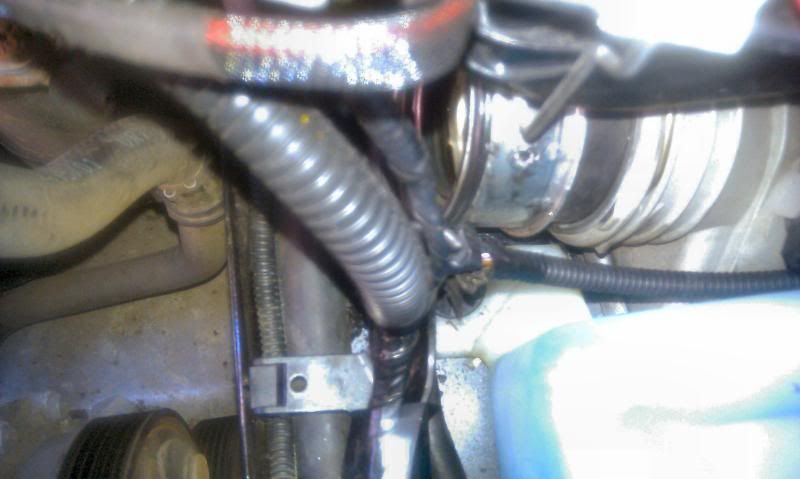

Posted Image

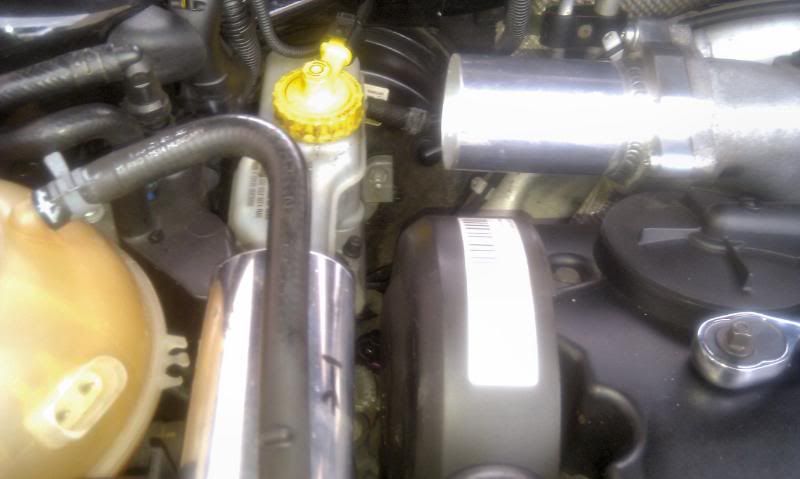

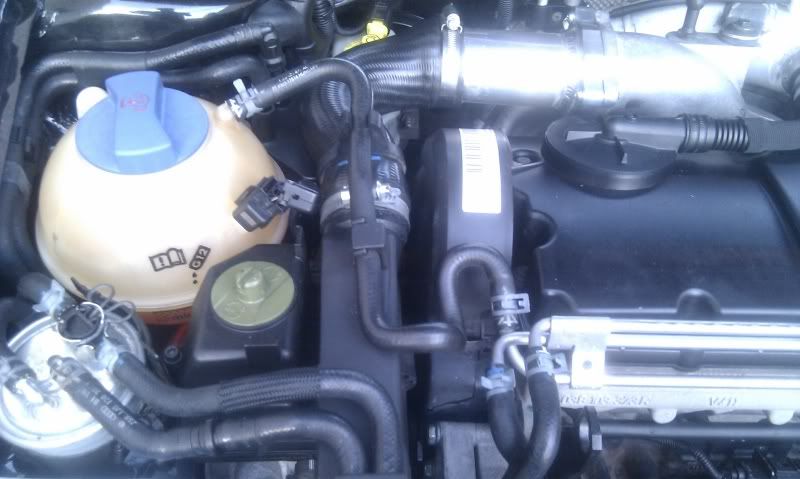

Whilst intercooler piping was off it was time for a change. Something a bit smoother flowing!

Posted Image


Its suprising how restrictive this intercooler to EGR pipe is.When you put the new 57mm pipe at the side of it some of the bends are unbelievable. Heres the origional intercooler connection. which will be removed and replaced with the alloy machined SFS part.

Posted Image


Posted Image


Posted Image


The parts I got were not an expensive kit but rather ecomomically s elected items from ebay. They do require a bit of cutting of the 57mm 45deg alloy bend. but its easy to do.

Posted Image


Posted Image

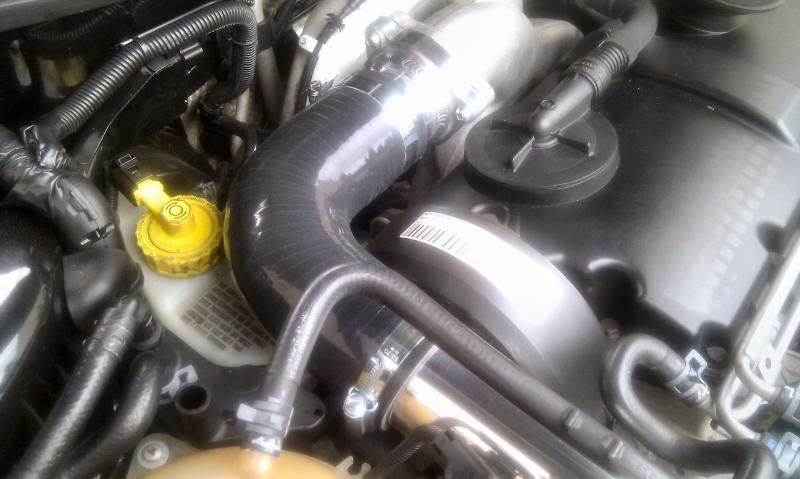

Connection to the EGR 57mm 90 deg silicone bend

Posted Image


Before

Posted Image


After...The complete replacement. Looks nice and OEM and flows much better.

Posted Image


Well impressed with the result all at a cost of ;

2x 57mm 90deg silicone bends £22.66

1x 57mm 45 deg alloy bend £19.99

4 x 55mm-70mm jubilee clips £2.92

1X alloy adaptor 57mm to VW intercooler £12.50 This is a SFS item which I purchased off a member ( thanks Dub130)

total £58.97

A whopping saving over the SFS price @ £133
